HZ-A324 A3 size UV flatbed printer 320×440mm

Printer video: https://youtu.be/ORNWU1hzm6w?si=_jYjyOb_QRjUya2c

Our HZ-A324 UV printer is deluxe version of high precision inkjet printer with effective 320×440mm printing size,
high resolution printing for outdoor and indoor small stuffs printing.
1440dpi high resolution leads the small UV printer to a new standard.
Your new profit pattern will be established and new business opportunity will be discovered.

1. Printer application:

UV printer can print on many flat surface materials, such as wood, acrylic, plastic, resin, foam board, KT board,
PVC, metal, aluminum, glass, ceramic, stone, sticker, leather, phone case, pens, crystal, ABS/EVA, golf ball, bottle, etc.

2. Printer features:

The advantages of our Honzhan HZ-A324 A3 size digital UV printer:
1). Our UV printer equipped with Epson XP600 printhead to meet the demand of high resolution and faster speed.
Epson XP600 printhead has 6 channels × 180nozzles = total 1080 nozzles, its inkjet volume and speed are great.

2). Our printer using industrial grade control boards, realize industrial-grade product design,
belongs to industrial printing machine, fast printing speed, very less after-sales problem.

3). Automatic capping system is easy operation and maintenance for our UV printer.
4). This UV printer is combined inkjet printing and UV led lamp curing drying system,
printed image can be dry directly after printing, and the printed image have embossed effect.
5). We use specially R&D printing software for our printers, very stable and easy to operate, complete in operation data.
Fully intelligent, making printing more efficient. Almost all printing steps are operated by software, very convenient and simple.
6). Simple button operation panel, basically all operations are done through printing software, very convenient and direct.
7). Continuous ink supply system is standard option for this UV printer, which is setting on the top of printer, easy to monitor ink level and easy ink refill.
8). We use high quality UV inks, the color of the printed image will not fade under the sun, scratch resistance, waterproof.
9). This UV printer adopts high speed USB interface that get better large data transfer and anti-signal interference.
It is supporting Windows7 Windows10 Windows11 32-bit 64-bit system.
10). This printer owns strong heavy-duty machine body, without any shake during printing, ensures stable printing and long time working.

3. Technical parameters:

Model

HZ-A324 UV printer with single-printhead

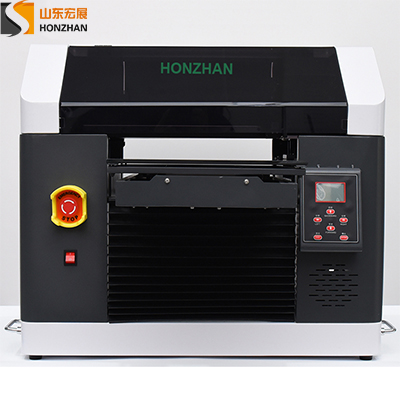

HZ-AT324 UV printer with dual-printhead

Printhead

1pc Epson XP600 printhead

2pcs Epson TX800 printheads

Nozzle type

Micropiezo inkjet printing

Print Resolution

360*720dpi, 720*720dpi, 720*1440dpi, 1440*1440dpi, 720*2880dpi

Printing size

320*440mm

Print materials thickness

0-250mm

Operation interface

Button operation panel

Print mode

Unidirection or Bidirection

Nozzle clean

Auto cleaning system with anti clogged flash spray and moisturizing function

Material application type

Wood, acrylic, plastic, foam board, PVC, metal, aluminum, glass,ceramic, stone, sticker, leather, phone case, crystal, golf ball, bottle and many flat surface materials.

Printing Speed

3 square meters per hour

5 square meters per hour

Ink type

UV Ink

Ink Color

CMYK+ 2 White or CMYK+LC+LM

CMYK+ 2 Varnish + 6 White

Ink Cartridges

Continuous ink supply system ink cartridges

Picture drying system

UV led lamp curing drying system

Platform in and out

Automatic, laser positioning, accurate

Platform lift

Automatic/manual adjustment, height sensing, photoelectric shooting limit switch

Rip Software

MainTop V6.1 rip software, optional PhotoPrint

Printing method

Print white ink, Print color ink, White+Color ink printing at one time

Image type

TIFF, JPEG,EPS,PDF etc.

Color control

Comply with international ICC standard, with curve and density adjustment function

Interface

high speed USB transmission USB2.0/3.0

Operation System

Windows 7, Windows 8, Windows 10, Windows 11, 32-bit 64-bit

Working environment

Temperature: 10°-35° C, Humidity: 40%-65%RH

Working voltage

220V, 50HZ, optional 110V 60HZ

Machine Weight

about 60kg

*1. Our printer is available in dual-printhead configurations.
  2. We also produce Eco-solvent flatbed printer and T-shirt DTG printer.
  If any inquiry, please feel free to contact us.

4. A3 size UV printer HZ-A324 photos:

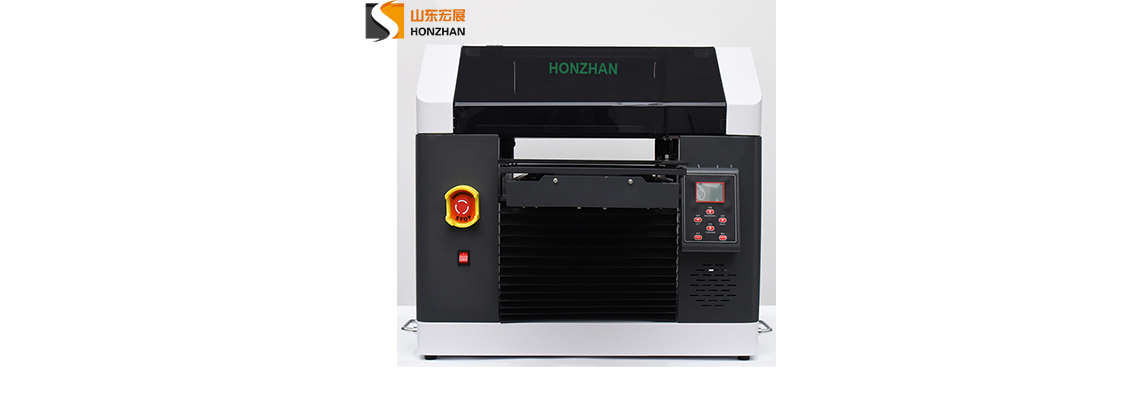

Front of the printer:

Our printer platform can lift 0-250mm, it can print thicker materials without limitation.

Right side of the printer:

Left side of the printer:

High-definition details, quality is visible:

Our printer use simple button operation panel, basically all operations are done through printing software, very convenient and direct.

At the left side of the printer, there are the machine's emergency stop button and power switch.

The metal sheet of the printer casing adopts a hollow design to help dissipate heat from the internal boards of the printer.

Continuous ink supply system is standard option for our UV printer, which is setting on the top of printer, easy to monitor ink level and easy ink refill.
We use high quality UV inks, multi-color inkjet printing, perfect color transition,
the color of the printed image will not fade under the sun, scratch resistance, waterproof.
We use 250ml large-capacity refillable ink cartridges, which not only ensures sufficient ink in the printer,
but also achieves long-time printing without ink shortage.



This UV printer has white ink circulation system, it has stirring and circulation functions, which can effectively prevent white ink precipitation.



This printer use high quality mute chain, HIWIN linear guide rail with sound off function, more durable and reliable for high precision printing.
Our printer is combined inkjet printing and air-cooled UV led lamp curing drying system, printed image can be dry directly after printing.

Our printer using industrial grade control boards, realize industrial-grade product design,
belongs to industrial printing machine, fast printing speed, very less after-sales problem.

This printer use Epson XP600 printhead and MainTop 6.1Version Rip software, convenient pattern layout, rich and vivid colors,

the software has professional ICC curve, achieve high resolution printing.

Epson XP600 has 6 channels × 180nozzles = total 1080 nozzles, its ink jet volume and speed are both greater.

MicroPiezo Inkjet, equipped with intelligent variable ink drop technology.



Accessories in the accessory box, shipped with the printer:

our company sell good quality UV inks, White, Cyan, Magenta, Yellow, Black, LC, LM, colors UV ink, ink cleaning liquid.

5. Print samples:

This UV printer can print on many flat surface materials, such as wood, acrylic, plastic, resin, foam board, KT board, PVC,

metal, aluminum, glass, ceramic, stone, sticker, leather, phone case, pens, crystal, ABS/EVA, golf ball, bottle, etc.

6. Packaging & Shipping:

1. Our machine use wooden box packaging, meet export demand. We use Water-proof plastic film package with foam protection in each corner,
solid seaworthy Wooden Box Package with steel belt, save space as much as possible for container loading.
The machine is more fixed in the wooden crate and will not tremble or shift during transportation.
2. We can cooperate use EXW, FOB, CFR or CIF term.
3. Standard machine delivery time: 4-7 working days.
4. Machine can ship by Air, by Sea, By Express.
5. After shipment, we will send clearance documents to our clients, including Packing List, Commercial Invoice,
Bill of Lading, and other certificates as required by clients.



                        Wooden box package                                                            Transportation

If any inquiry, please feel free to contact us. We are producing UV printer, Eco-solvent flatbed printer and T-shirt DTG printer.
Warmly welcome your inquiry by online, Email, Skype, Wechat or WhatsApp.
We look forward to cooperating with you.

Contact information:

Alice Wang

Shandong Honzhan Decoration Engineering Co.,Ltd

Tel/WhatsApp: +8618660396497

WeChat: qingwin2010

Skype: live:sales_87776

E-mail: sales@honzhanmachines.com



FAQ

Question and Answer

1. What materials can your UV printer print on?

UV printer can print on many flat surface materials, such as wood, acrylic, plastic, resin, foam board, KT board,
PVC, metal, aluminum, glass, ceramic, stone, sticker, leather, phone case, pens, crystal, ABS/EVA, golf ball, bottle, etc.

2. What's the max print size can I print ?

Our printer max print size: 320×440mm.

3. What's the max material thickness can I print ?
Our printer can print 0-250mm thickness materials, as long as your material thickness is less than 250mm, our printer all can print it.
4. Does your printer have white ink circulation system ?
Yes, our UV printer has white ink circulation system, it has stirring and circulation functions, which can effectively prevent white ink precipitation.
5. Do I need to do pre-treatment before printing?
In addition to these three materials: metal, glass and ceramic, need to do pre-treatment to help fix the inks.
Other materials don't need to do pre-treatment.
6. Where can I buy the spare parts and inks ?
You can buy spare parts and inks from our company, also can buy in your local.

7. Does your company also supply Eco solvent flatbed printer, T-shirt DTG printer ?

Yes, our company producing and selling UV printer, Eco solvent flatbed printer and T-shirt DTG printer.
Any inquiry, please feel free to contact us.

8. What is your payment method ?
Our payment terms is T/T, Western Union, Alibaba trade assurance, L/C at sight.
