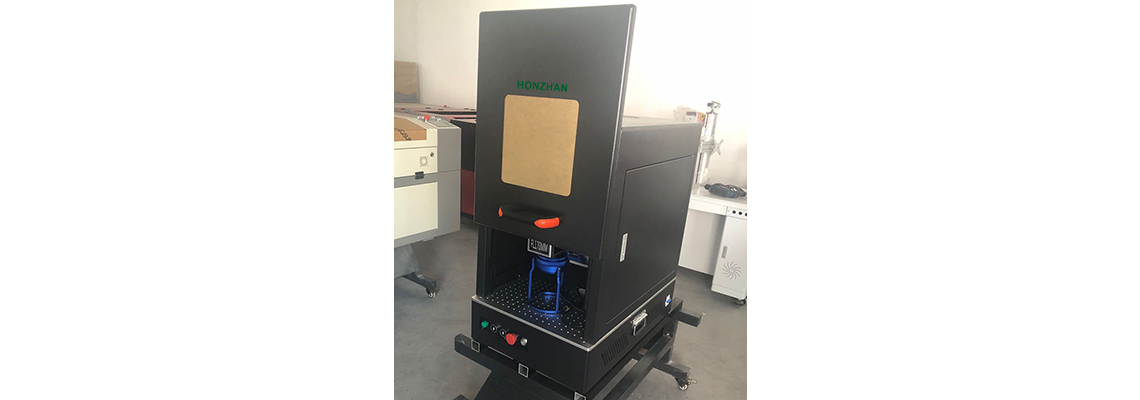

Upgrade Honzhan HZ-FS Series Sealed Fiber Laser Marking Machine with Removable handheld fiber laser marking function Upgrade Honzhan HZ-FS Series Sealed Mini Fiber Laser Marking Machine with Protective Cover, safe doors in internal design, to protect safety of works at maximum extent. Fiber laser marking is a new generation laser marking system with newest laser technique in the world. It design with fiber laser marker as laser source, and thru high-speed vibration mirror scan system to actualize marking function. The fiber laser marking machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc. Laser marking is local irradiation in substances with high energy laser beam to make it evaporate rapidly and color change by physical or chemical reaction. These markers are permanent and hard to remove. 1. Application: Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products and so on. Widely used in hardware tool products, electrical products, consumer goods, sensors, automotive parts, 3C electronics, crafts, precision equipment, gift accessories, medical equipment, high and low voltage electrical appliances, sanitary industry, battery industry, IT industry and other fields. 2. Fiber laser marking machine Features: 1). Honzhan HZ-FS series Mini Fiber laser marking machine use enclosed machine structure, safe doors in internal design, to protect safety of works at maximum extent. Highly sealed cabinet but with good cooling effect, can be used in every environment. 2). The integrated design of the electrical cabinet and the marking workbench is light and flexible, good dustproof effect, a classic product, hot sale in the market for many years! 3). This model can be equipped with a variety of laser power source. No matter what industry you are in, we can provide you with the most suitable fiber laser marking machine. 4). The machine has a long service life, stable laser output power, high reliability, High electro-optical conversion rate, no power coupling loss, no consumables. The laser is maintenance-free for 100,000 hours, can work more than 10 years without problem. 5). Honzhan Fiber laser marking machine fast marking Speed and High Efficiency. The whole machine has low power and uses built-in cold air to reduce the power consumed during operation. 6). The marking effect is excellent, and various fine and complex patterns required by the user can be marked on the extremely tiny surface. 7). Affordable, low investment cost, high cost performance. 3. Technical Parameters: <table border="1" class="Table" style="background:white;border-collapse:collapse;border:1pt solid windowtext;width:600px;" width="549"> <tbody> <tr style="height:22.4pt"> <td> Name </td> <td colspan="2"> Desktop Enclosed Fiber Laser Marking Machine </td> </tr> <tr style="height:21.75pt"> <td> Model </td> <td> HZ-FS20 </td> <td> HZ-FS30 </td> </tr> <tr style="height:22.4pt"> <td> Laser power </td> <td> 20W </td> <td> 30W </td> </tr> <tr style="height:21.75pt"> <td> Marking Area </td> <td colspan="2"> 110*110mm </td> </tr> <tr style="height:21.75pt"> <td> Lifting method </td> <td colspan="2"> Electric lift </td> </tr> <tr style="height:21.75pt"> <td> Upgrade function </td> <td colspan="2" style="text-align: center;">handheld fiber laser marker can be taking out use</td> </tr> <tr style="height:21.75pt"> <td> Laser type </td> <td colspan="2"> Raycus </td> </tr> <tr style="height:22.4pt"> <td> Laser marking board </td> <td colspan="2"> Genuine EZCAD Laser marking board </td> </tr> <tr style="height:22.4pt"> <td> Galvanometer </td> <td colspan="2"> Beijing Sino-Galvo brand </td> </tr> <tr style="height:22.4pt"> <td> Field lens </td> <td colspan="2"> Nanjing Wavelength OE brand </td> </tr> <tr style="height:21.75pt"> <td> Laser Wavelength </td> <td colspan="2"> 1064nm </td> </tr> <tr style="height:22.4pt"> <td> Beam quality M2 </td> <td colspan="2"> <1.2 </td> </tr> <tr style="height:22.4pt"> <td> Pulse repetition frequency </td> <td colspan="2"> 10kHz-200kHz </td> </tr> <tr style="height:21.75pt"> <td> Focusing range </td> <td colspan="2"> ≤± 30mm </td> </tr> <tr style="height:22.4pt"> <td> Cooling system </td> <td colspan="2"> Air cooling </td> </tr> <tr style="height:21.75pt"> <td> Marking speed </td> <td colspan="2"> ≤12000mm/s </td> </tr> <tr style="height:22.4pt"> <td> Max. Marking Depth </td> <td colspan="2"> ≤0.1mm </td> </tr> <tr style="height:21.75pt"> <td> Marking lines </td> <td colspan="2"> 1-10 marking lines (in the marking area) </td> </tr> <tr style="height:22.4pt"> <td> Minimum line width </td> <td colspan="2"> 0.01mm </td> </tr> <tr style="height:22.4pt"> <td> Minimum character </td> <td colspan="2"> 0.15mm </td> </tr> <tr style="height:21.75pt"> <td> Resolution ratio </td> <td colspan="2"> 0.01mm </td> </tr> <tr style="height:22.4pt"> <td> Repeatability accuracy </td> <td colspan="2"> ±0.002mm </td> </tr> <tr style="height:21.75pt"> <td> Graphic format supported </td> <td colspan="2"> BMP,PNG,DXF,etc </td> </tr> <tr style="height:22.4pt"> <td> Computer system </td> <td colspan="2"> Suitable Win7, Win10 system </td> </tr> <tr style="height:22.4pt"> <td> Operating Voltage </td> <td colspan="2"> 220V, 50Hz, optional 110V, 60HZ </td> </tr> </tbody> </table> *HONZHAN Laser Marking Machines can be equipped with different configuration to meet the requirements of different users. 4. Upgrade HZ-FS Series Sealed Fiber Laser Marking Machine Detail Images: <img border="0" src="https://www.honzhanmachines.com/static/upload/20200227/Fiber Laser (7).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20200227/Fiber Laser (4).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20200227/Fiber Laser (5).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20200227/Fiber Laser (3).jpg" title="image" /> Upgrade function: the handheld fiber laser marker can be taking out use. Lift the limits of the enclosed space, this function is very suitable for different sizes and height materials marking, a multi-purpose machine. Safe and reliable. <img border="0" src="https://www.honzhanmachines.com/static/upload/20200227/Fiber Laser (6).jpg" title="image" /> 5. Fiber Laser Marking Machine Marking Samples Show: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191130/Desktop%20Fiber%20Laser%20Marking%20Machine.jpg" title="image" />
