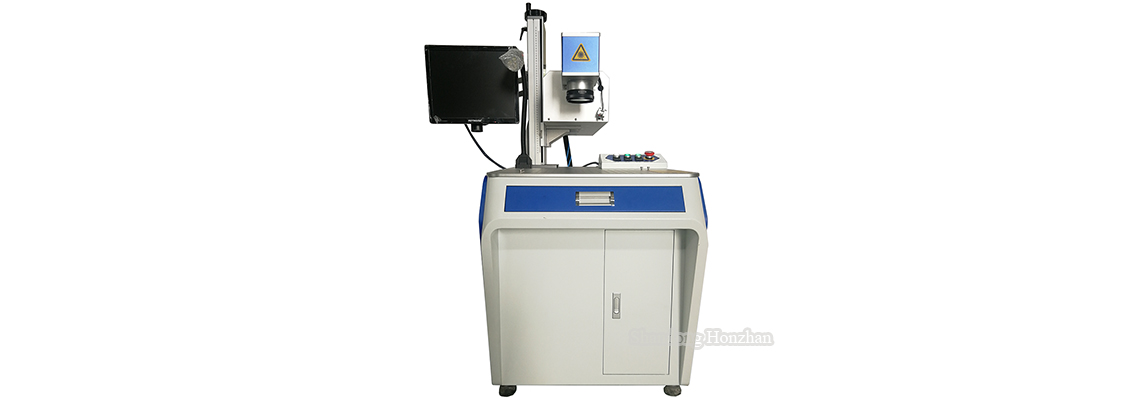

UV Laser Marking Machine Honzhan HZ-VL Series UV Laser marking machine has high beam quality and small size spot, and the processing of heat affected area is small, can be used for ultra-fine marking, special material marking. Equipped with the latest external water cooling system, with extremely low operating noise and high temperature adjustment accuracy, which provides a reliable guarantee for the equipment's 24-hour work. It can be used for laser processing of difficult-to-mark materials (such as crystals and high flame retardant materials), also use for marking on the surface processing or coating film processing of most metal and non-metal materials. 1. Application: 1). HONZHAN UV Laser Marking Machine is mainly used in precision processing of high-end market, handicrafts, medicine, cosmetics, video and other polymer materials packaging bottle, the mark is very precise and stands wear, better than inkjet printing and pollution-free; 2). The flexible PCB marking and scribing, silicon and wafer micro hole, blind hole processing; 3). LCD glass QR code marking, glass wares punching, metal surface coating marking, plastic buttons, communications equipment, electronics and so on. 4). Hardware, ceramics, glasses and watches, computer case, electronic devices, all kinds of instruments, PCB boards and control panels, nameplate display boards, plastic glass, surface and internal carvings of crystal products. 2. UV Laser Marking Machine Features: 1). Short UV wavelength 355nm reduces heat effect on work piece 2). Precise marking effect and available repeatable marking 3). High precision scanning galvanometer laser head 4). Extraordinary fine spot guarantee perfect marking performance. High quality laser beam, small-size spot, can do super precise marking/engraving. 5). Non-contact marking, permanent mark. 6). Heat affected area is very small, no heating effect, material will not be burned or deformed. 7). High marking speed, high efficiency. Stable performance, high electro-optic conversion efficiency, little energy coupling loss, less power consumption with just one kilowatt per hour. 8). specially reinforced light path base to meet long-term, stable work needs. 9). Equipped with precision grating digital display ruler, multi-position processing, more accurate positioning. 10). Very suitable for the material which is greatly reacted by thermal radiation, can work with production line to feed and discharge materials automatically. 11). Flexible and convenient operating system: User-friendly operation, you can edit the text symbols, graphics, bar code, QR code, serial number and so on easily; High compatibility support PLT, PCX, DXF, BMP, JPG and other formats files output from AutoCAD, CorelDRAW, Photoshop, AI and so on. Since very small focusing spot and heat affected area, UV Laser Marking Machine can provide super precise marking, special material marking, it is the top option for those customers who have high requirement for marking effect. 3. Technical Parameters: <table border="1" class="Table" style="border-collapse:collapse;border:1pt solid windowtext;width:650px;"> <tbody> <tr> <td> Name </td> <td colspan="3"> UV Laser Marking Machine </td> </tr> <tr> <td> Model </td> <td> HZ-VL3 </td> <td> HZ-VL5 </td> <td> HZ-VL10 </td> </tr> <tr> <td> Output power </td> <td> 3W </td> <td> 5W </td> <td> 10W </td> </tr> <tr> <td> Laser Wavelength </td> <td colspan="3"> 355nm </td> </tr> <tr> <td> Power consumption </td> <td colspan="3"> 1000-1800W </td> </tr> <tr> <td> Beam quality M² </td> <td colspan="3"> ＜1.1 </td> </tr> <tr> <td> Laser Q-switched frequency </td> <td colspan="3"> 0-100kHz </td> </tr> <tr> <td> Pulsed Width </td> <td colspan="3"> <20ns@50Khz </td> </tr> <tr> <td> Cooling system </td> <td colspan="3"> Water cooling </td> </tr> <tr> <td> Marking area </td> <td colspan="3"> 150*150mm </td> </tr> <tr> <td> Focus Spot Diameter </td> <td colspan="3"> <0.01mm </td> </tr> <tr> <td> Marking speed </td> <td colspan="3"> 7000mm/s </td> </tr> <tr> <td> Min. Line Width </td> <td colspan="3"> ≤0.005mm </td> </tr> <tr> <td> Min. Character </td> <td colspan="3"> 0.15mm </td> </tr> <tr> <td> Power Stability (8h) </td> <td colspan="3"> <±1%rms </td> </tr> <tr> <td> Marking Type </td> <td colspan="3"> Dynamic Mark / Static Mark </td> </tr> <tr> <td> Repeat accuracy </td> <td colspan="3"> ±0.0001mm </td> </tr> <tr> <td> Lifespan of UV Laser Source </td> <td colspan="3"> Max. 20 000 hours </td> </tr> <tr> <td> System Operation Environment </td> <td colspan="3"> Windows XP/7/8 64bits </td> </tr> <tr> <td> Operating Voltage </td> <td colspan="3"> 220V, 50Hz, optional 110V, 60HZ </td> </tr> <tr> <td> Operation Environment </td> <td colspan="3"> 18°C-40°C </td> </tr> <tr style="height:3.05pt"> <td> Machine power </td> <td colspan="3"> <4KW </td> </tr> </tbody> </table> *HONZHAN Laser Marking Machines can be equipped with different configuration to meet the requirements of different users. 4. UV Laser Marking Machine Detail Images: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine (5).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine (6).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine (2).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine (4).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine (7).jpg" title="image" /> 5. UV Laser Marking Machine Marking Samples Show: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191201/UV Laser Marking Machine Honzhan.jpg" title="image" />
