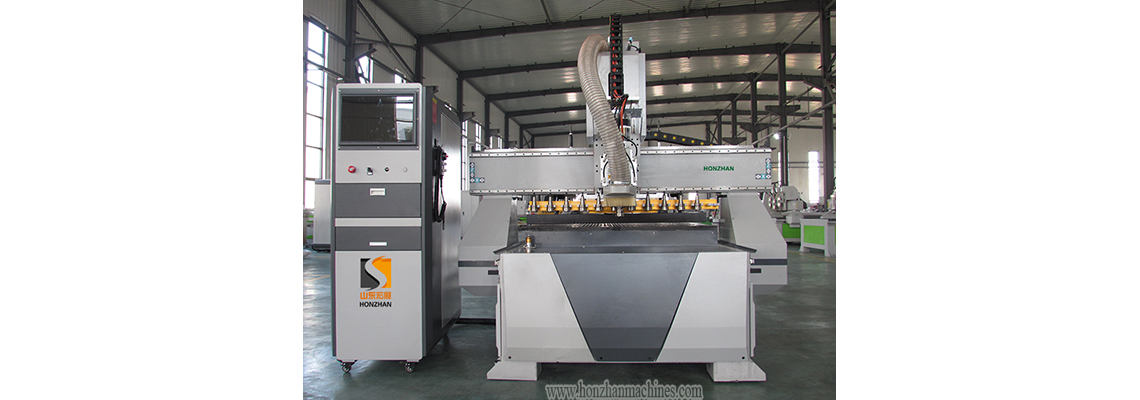

HZ-LR1330 Linear Straight Automatic Tool Changer CNC Router Machining Center with Swing Head Rotate 180 Degrees
1. Application:
1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.
Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet.
2). Wood products: game cabinets, computer tables, sewing tables, musical instruments, bookcase, entrance cabinet, display cabinet, medicine cabinet, wooden speaker.
3). Decoration industry: Acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and soft metal such as copper and aluminum
This CNC router have automatic tool changer, automatic vacuuming, automatic positioning, automatic oiling functions. Applicable to many kinds of wood boards' plane milling, engraving, hollowing, cutting, 3D relief etc. diversified processing.
2. Features:
1). Honzhan HZ-LR1325 Linear Straight Automatic Tool Changer CNC Router Machining Center with Swing Head Rotate 180 Degrees, It can process materials with different heights, thicknesses, sides, grooving, drilling, punching, effective processing, improve the work efficiency and meet the carving and cutting different requirements for different materials.
2). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.
3). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.
4). High quality vacuum adsorption platform, help achieve the perfect cutting effect. Can perfectly realize special-shaped cutting, small-cut cutting, and the minimum cutting plate can reach 25mm.
5). Good dust collector effect, can take away 95% dust, keep clean working environment.
6). Safety intelligence, with intelligent processing and cross-border protection, prevent mechanical collisions caused by processing size exceeding design layout.
7). CNC machine use computer control, simple operation, greatly improving work efficiency.
3. Technical parameters:
| Machine: Linear Straight Automatic Tool Changer CNC Router Machining Center with Swing Head Rotate 180 Degrees | |||
| Model | HZ-LR1330 | ||
| Platform size | 1300*3080mm | ||
| Work area(X,Y,Z) | 1300*3000*300mm (customizable) | ||
| Travelling speed | 60m-80m/min (MAX) | ||
| Working speed | 25m/min (MAX) | ||
| Working voltage | AC380V/3PH/50HZ | ||
| Spindle power | SK 9KW Automatic tool changer spindle (24000RPM/min speed) | ||
| Swing Spindle | Left and right vertical 90 degrees, total can rotate 180 degrees | ||
| Tools magazine | Linear 12 tools magazine automatic tool changer | ||
| Tool holder | ISO30 | ||
| Device architecture | The machine bed is finished by five-face milling center. Milling drilling, one-shot forming, vibration aging treatment, gantry tempering, no deformation, stable structure. | ||
| Driving system | Leadshine servo motor and driving system | ||
| Transmission parts | Taiwan YYC Alloy hardened Rack and pinion, Taiwan Hiwin linear rail and TBI Ball screw | ||
| Operating system | Taiwan Baoyuan operate system | ||
| Positioning method | High precision automatic air positioning cylinder | ||
| Countertop structure | Vacuum table, with patch function, to ensure that small board not move. | ||
| Electrical accessories | OMRON, Chint brand original authentic electric device | ||
| Inverter | Delixi brand 11KW high precision inverter | ||
| Power cable | Customized high-flexible high-speed shielded cable to prevent interference and breakage. | ||
| Lubrication system | Automatic Oil pump centralized lubrication control | ||
| Security system | Overtravel protection, electrical protection | ||
| Vacuum system | UPVC vacuum line + steel wire vacuum hose | ||
| Tool sensor | Automatic and precision tool sensor | ||
| Dust collector | High power automatic dust collector with dust collector hood | ||
| Connect parts | The transmission parts are fixed by high-strength 12.9 screws, and the sheet metal is fixed by 304 stainless steel screws. | ||
| Precision guarantee | The XYZ axis are rigidly fixed, the precision parts are equipped with positioning pins. | ||
| Quality control | Manufacturing, delivery full control, 24-hours inspection experiment before delivery | ||
|
Standard accessories | 1 | 7.5KW water-cooled vacuum pump (optional air cooling ) | 1 set |
| 2 | 5.5KW two bags dust collector | 1 set | |
| 3 | Tool box (Include wrench) | 1 set | |
| 4 | Collect (ER32) | 12 units | |
| 5 | Software | English language | |
*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users.
